LARGE BOUNDARY SURVEYS
Arc’s Surveying and Mapping Inc., is providing Large Boundary Survey’s for Duval, St. Johns, Nassau, and Clay counties, to mention a few.
These projects can run from several acres to a 1,000 acre tracts of land. We are experts in development and provide large boundary surveys to an Engineer for development of a Subdivision.
Development requires we provide a topographic survey on a specified grid spacing, along with wetland locations, tree locations, underground locations, and a topographic of the right of way for tie ins. After design, we then plat the lands and submit to the certifying county for approval.
Once complete we then begin to layout the roadways, electric, water meters and individual lots for the builders to purchase for selling houses. This particular property was 272 acres located off of Greenbriar Road in St Johns County. More than half of the property included wetlands.

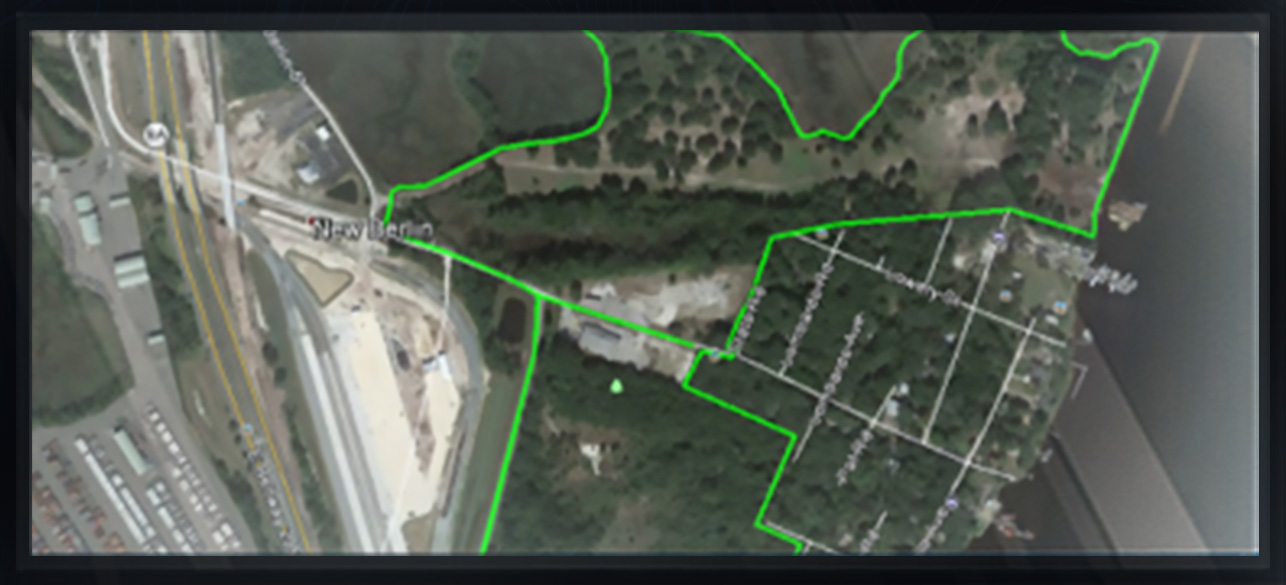

Another recent large project was located at Dames Point in Duval county. This consisted of 5 total properties combined into one large parcel over 100 acres.
We surveyed and provided a contiguity affidavit that stated there existed no gaps, gores, or overlaps, and all were adjacent. After closing on the property, we continued with providing a topographical survey on a 50’ grid spacing, a wetlands survey, and a final tree survey consisting of over 2,700 trees. This was another project that required us to include a full topographical survey of the right of way.
We used a combination of conventional instruments and RTK units to complete this survey on time and on budget.
